Solar SCADA System
Powered by the robust edge computing and communication capabilities of the NCU (Network Control Unit), CloudSCADA provides an all-weather remote "cockpit" for your solar tracker system. Whether for individual unit commissioning or cluster management, da
Solar Tracker SCADA System: From Field-Level Control to Cloud-Based Intelligent O&M
A Solar SCADA System (Supervisory Control and Data Acquisition) is an advanced digital platform designed to monitor, control, and optimize solar tracker systems in real time. Powered by edge computing and intelligent communication through the NCU (Network Control Unit), CloudSCADA provides operators with a centralized digital cockpit for efficiently managing photovoltaic power plants.
Unlike traditional monitoring tools, the platform combines real-time control, historical data analytics, meteorological linkage, alarm management, and third-party system integration into one scalable architecture.

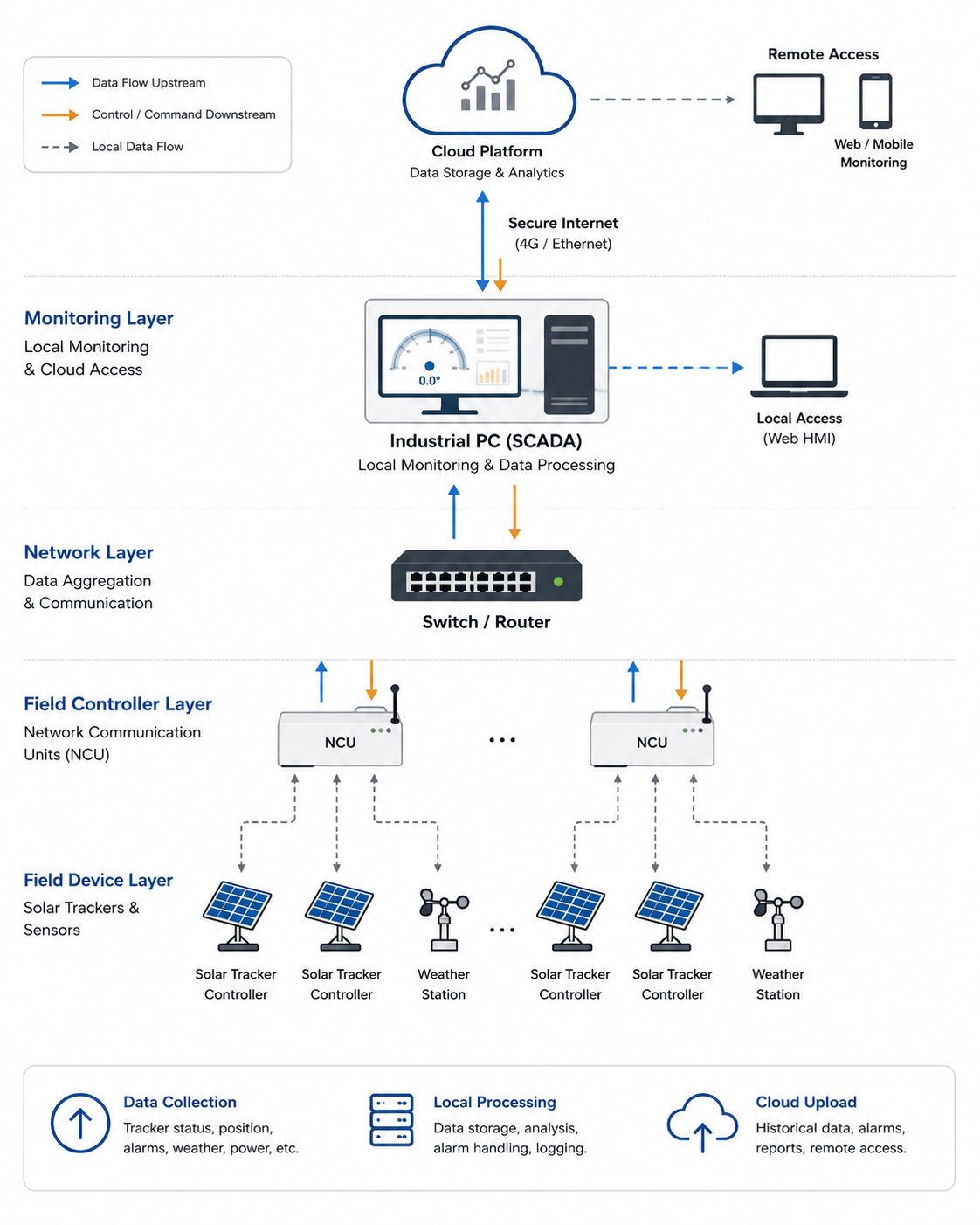

One Architecture from Tracker Row to Cloud
The Solar Tracker SCADA system connects field-level tracker controllers, NCU communication gateways, plant networks, local SCADA, meteorological sensors, and cloud services into one integrated architecture.
Field Level
TCUs perform independent tracker control, position feedback, motor control, battery monitoring, backtracking, and protection logic.
Plant Level
NCUs, area networks, and local SCADA provide centralized monitoring, command dispatch, alarms, data logging, and diagnostics.
Cloud Level
Cloud connectivity enables secure remote access, multi-site management, analytics, reporting, and higher-level platform integration.
Panoramic Monitoring from Plant to Individual Tracker
Gain both a complete plant-wide overview and device-level visibility through hierarchical monitoring and real-time visualization.
Real-Time Data Monitoring
Continuously monitor environmental data including wind speed, wind direction, irradiance, rainfall, and temperature.
Each tracker row can display target angle, actual angle, battery voltage, motor current, communication status, operating mode, and alarm status.
Multi-Level Data Drill-Down
Navigate through: Power Plant → Array / Zone → NCU → TCU .
Select any individual tracker controller to review real-time parameters, historical curves, alarms, and operating records.
Centralized SCADA Dashboard
Visualize total devices, online and offline status, alarms, communication availability, tracker operating modes, fault statistics, and other critical KPIs.
Multi-Site Management
Manage multiple photovoltaic sites from a common platform, allowing regional and global O&M teams to switch between projects and monitor assets remotely.

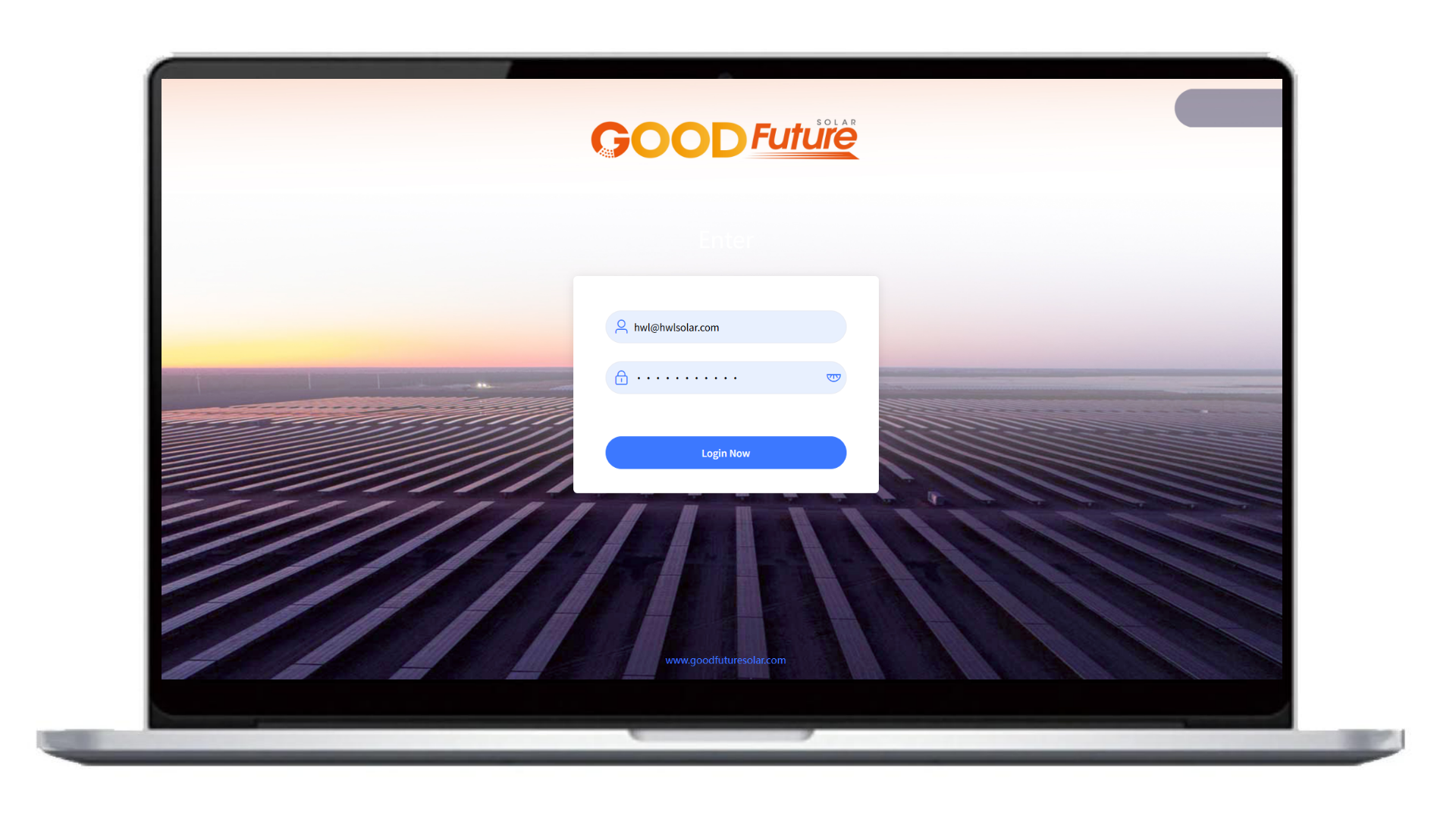

Secure Portal, Global Access
Simple Login, Controlled Access
Authorized personnel can securely access tracker information through a browser, local network, private network, VPN, or cloud portal depending on the project architecture.
Multi-level permission management allows different privileges to be assigned to administrators, plant managers, O&M engineers, EPC engineers, operators, and read-only users.
Interface Features: Clean and modern UI design, multi-language support, role-based access, and convenient web-based operation.

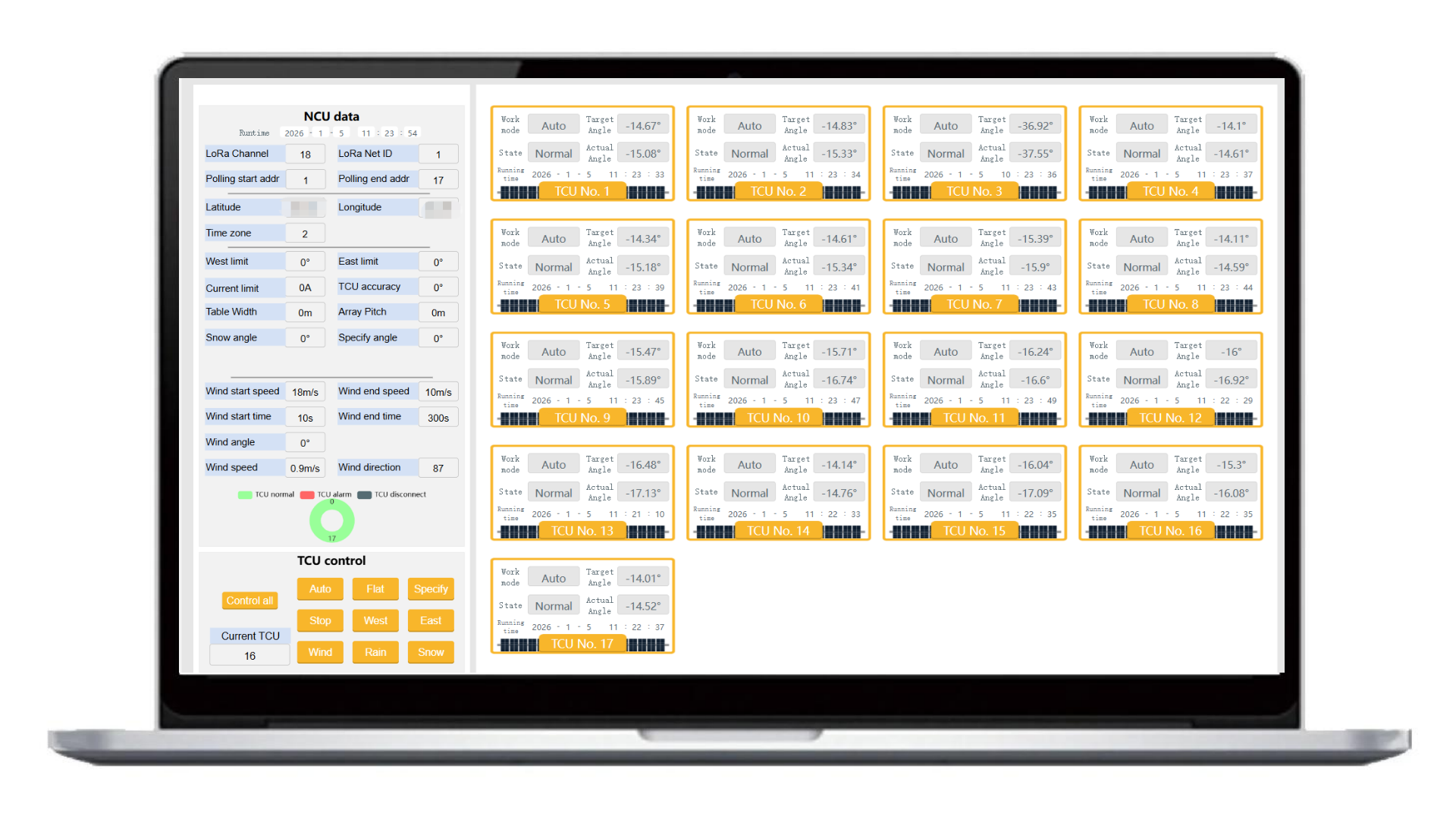

Cluster Array, Comprehensive Overview
Visualize the communication topology and operating status of multiple TCUs connected under each Network Control Unit.
Operators can immediately distinguish between Running, Alarm, Offline, and Standby devices without manually checking thousands of trackers.
Batch Remote Control
Commands can be issued to one tracker, selected groups, all TCUs under an NCU, an entire array, or the complete plant.
Typical commands include Auto-Tracking, Manual Angle, Wind Protection / Stow, Maintenance Mode, Stop, and Reset.
Efficient Command Dispatch for Large Tracker Arrays
Centralized remote control reduces field intervention and enables rapid operation of hundreds or thousands of tracker rows.
Remote Command Dispatch
Send commands to individual devices, groups, NCUs, arrays, or the entire plant.
- Auto-Tracking Mode
- Manual Specific Angle
- Wind Protection / Stow
- Maintenance Mode
- Stop / Reset where supported
Broadcast + Polling Strategy
Broadcast communication enables rapid distribution of critical commands such as wind stow, while polling-based communication collects controller responses and operating status in an organized manner.
This strategy is designed for efficient communication across large photovoltaic tracker arrays.

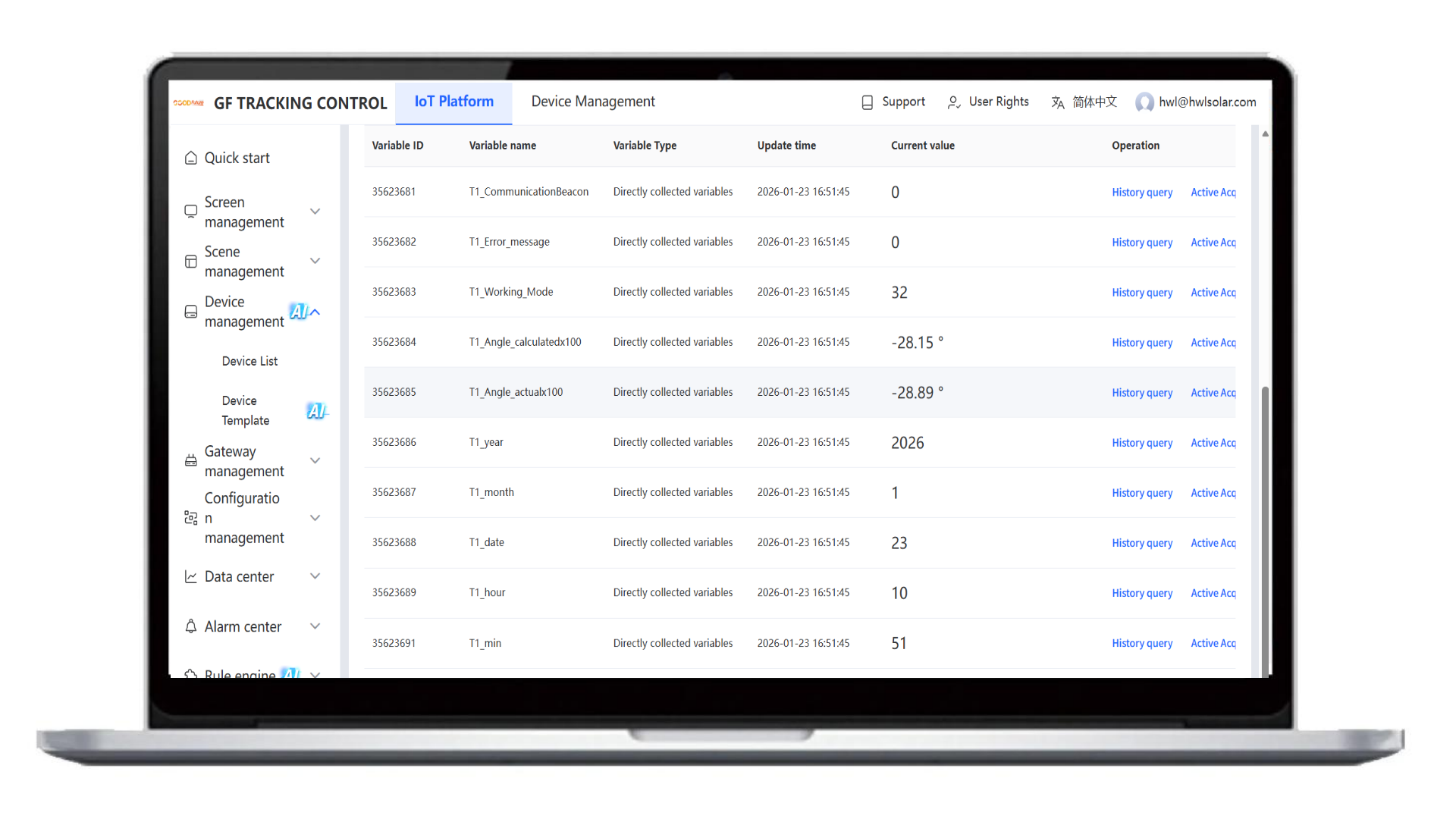

Device Details, Precise Perception
Drill down to an individual Tracker Control Unit to obtain detailed real-time operating information.
Tracking Position
Target angle, actual angle, and tracking deviation.
Electrical Parameters
Motor current, battery voltage, battery level, and power supply status.
Operating Information
Tracking mode, motor status, controller status, and communication quality.
Diagnostics
Fault codes, alarms, time synchronization, GPS information, and device events.
Independent Tracker Intelligence at the TCU Level
Essential tracker logic remains at field level, improving resilience and reducing dependence on continuous cloud connectivity.
Tracking Algorithms
Astronomical sun tracking, position calculation, backtracking, and anti-shadow control.
Motion & Feedback
Motor control, tilt sensing, position feedback, and operating status.
Protection Logic
Battery monitoring, wind stow, local protection, and fault detection.

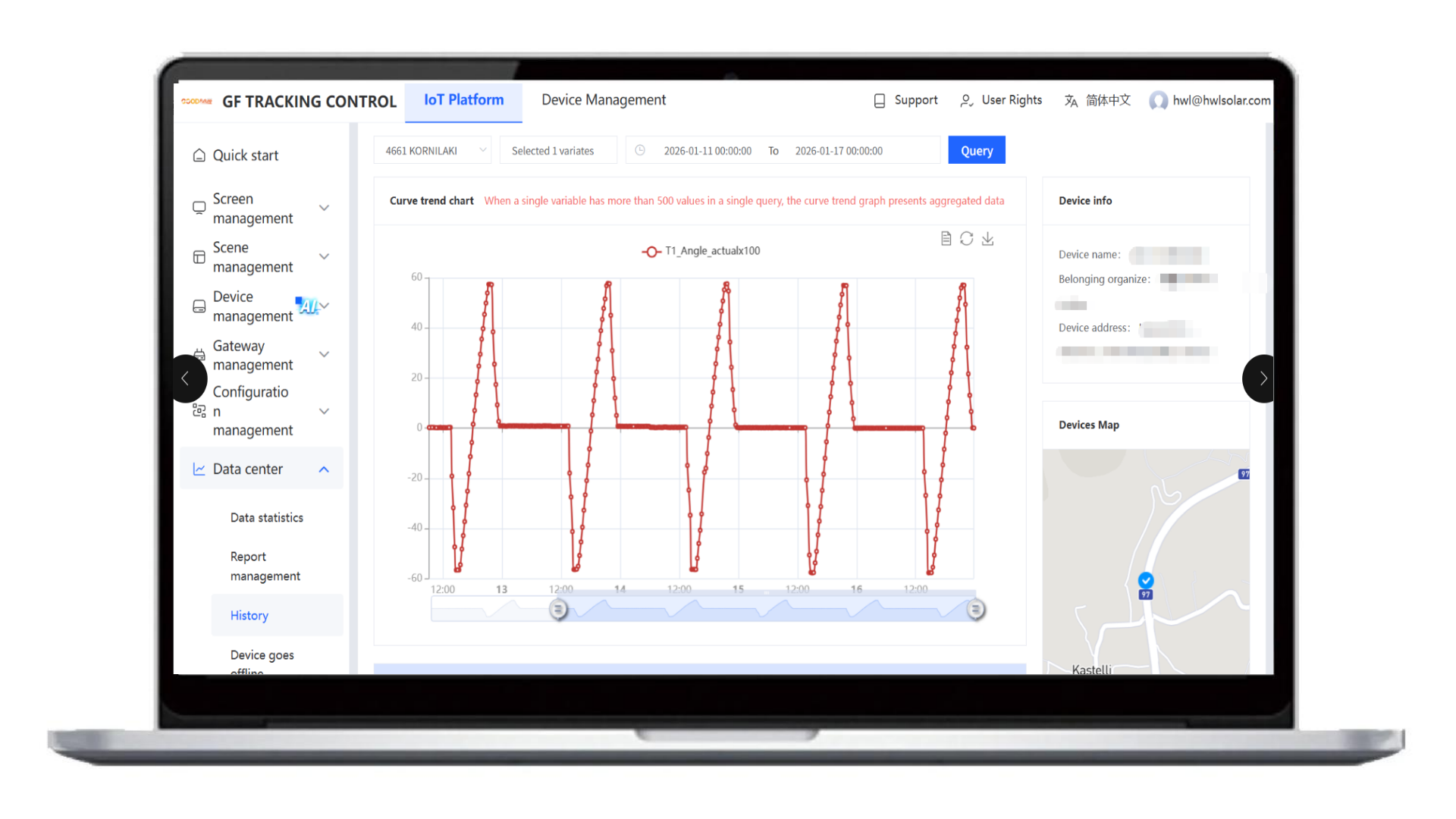

Historical Trajectory, Smart Traceability
CloudSCADA automatically records tracker operating trajectories and converts historical information into visual curves.
Theoretical vs. Actual Tracking Curve
Engineers can compare the Theoretical Astronomical Tracking Curve against the Actual Tracker Operating Curve to evaluate tracking performance.
Abnormal deviation may help reveal mechanical resistance, communication interruption, actuator problems, calibration errors, or other operational issues.
Data Export
Historical information can be exported in standardized formats such as CSV or Excel-compatible files for offline analysis and archiving.

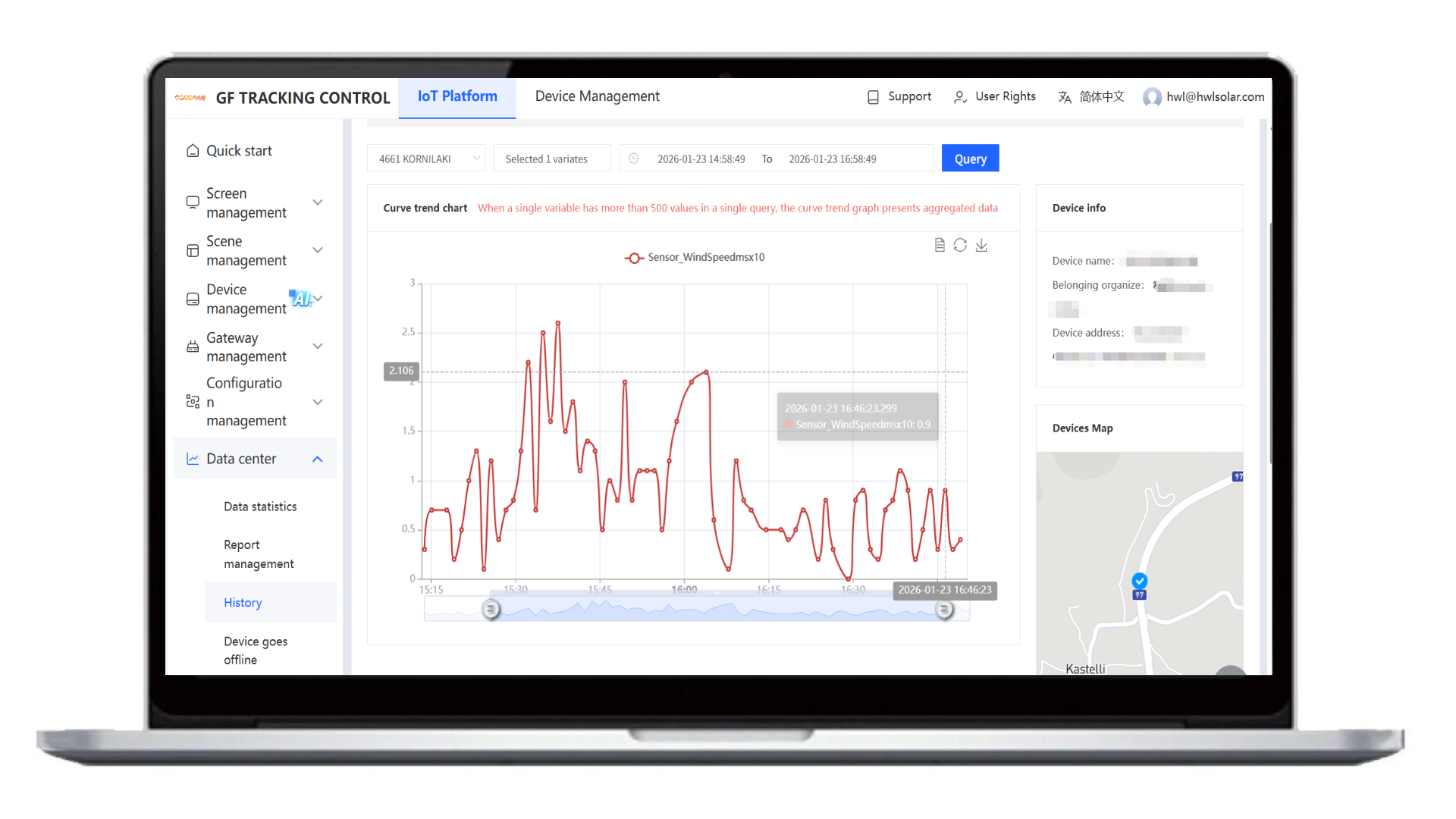

Meteorological Linkage, Active Protection
Weather stations and environmental sensors can connect to the NCU or plant communication network through interfaces such as Modbus RS485.
Supported information may include wind speed, wind direction, irradiance, rainfall, and temperature.
Safety Logic Verification: Compare the time when a wind speed threshold is exceeded with the time when tracker Wind Protection / Stow is triggered.
This correlation allows commissioning and O&M engineers to verify whether tracker protection logic responded correctly to environmental conditions.
Find Problems Faster and Reduce Field Troubleshooting
Real-Time Alarm Management
Generate alarms for communication failures, abnormal motor current, angle deviation, low battery voltage, environmental thresholds, offline devices, and other configured events.
Alarm information can be displayed through the platform and integrated with email, SMS, or other notification services where configured.
Fast Fault Location
Locate faults through the hierarchy: Plant → Area → NCU → TCU .
Maintenance engineers can identify the exact device affected before traveling to the field.
Operation Logs
Record alarms, device events, operator commands, communication events, configuration changes, user activity, and tracker operating records.
Search & Traceability
Search historical records by device, timestamp, NCU, array, event type, or alarm category.

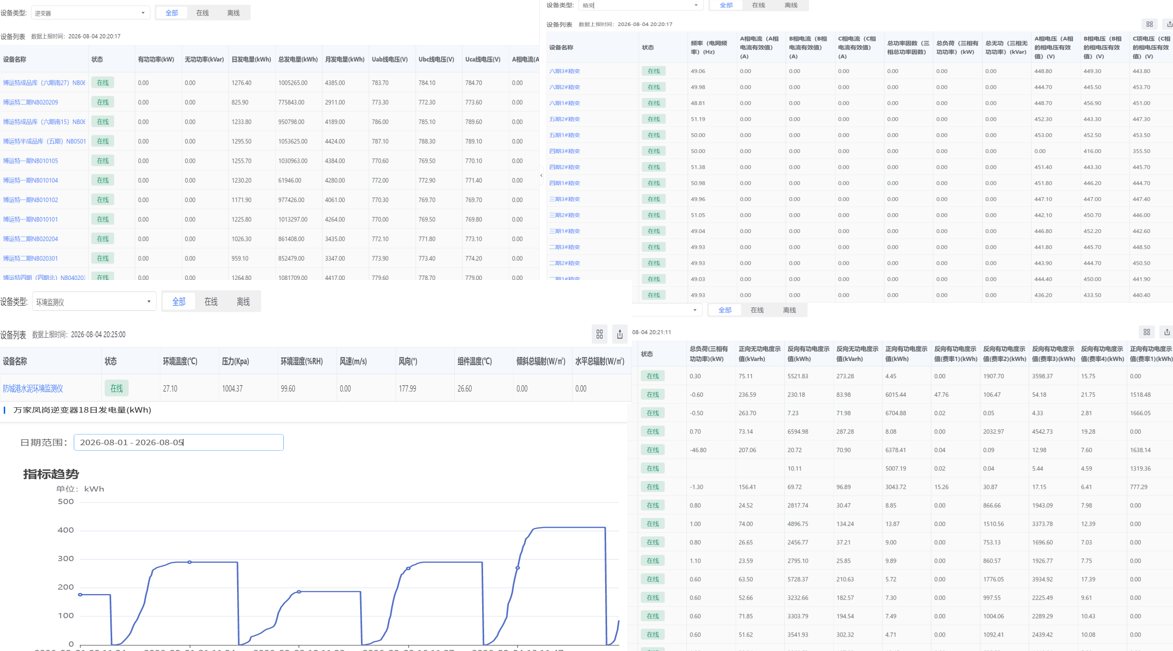

Turn Tracker Data into Actionable O&M Information
Online processing, historical analysis, and automated reports convert raw operating data into meaningful engineering KPIs.
Online Data Analysis
Continuously analyze tracker operating data, environmental conditions, alarm events, and communication availability.
Automated Reports
Generate daily, weekly, monthly, and custom-period reports.
KPIs may include operating hours, online rate, alarm count, fault statistics, tracker availability, and wind-stow events.
Centralized Device and Firmware Management
Device Registration & Management
Centrally manage TCUs, NCUs, meteorological sensors, communication gateways, and other supported devices.
Functions may include equipment registration, device grouping, communication configuration, parameter setup, and firmware version management.
Remote Firmware Upgrade
Where supported by the hardware, firmware can be remotely updated for individual TCUs, selected groups, NCUs, or large batches of devices.
Upgrade validation, rollback strategy, network reliability, and cybersecurity should be considered during implementation.
Flexible Industrial Communication
Support for commonly used industrial and IoT communication technologies allows the tracker system to adapt to different solar plant network architectures.
Supported communication technologies may include:
LoRa · Modbus RS485 · Modbus TCP/IP · TCP/IP · MQTT · HTTP / HTTPS
Standardized Data: Exportable and Integrable into Your SCADA System
CloudSCADA is designed not only as an independent monitoring platform, but also as an open data node within the wider solar plant ecosystem.
Standard Industrial Protocols
Data can be exchanged using standard interfaces such as Modbus TCP, MQTT, and HTTP / HTTPS depending on project requirements.
API Integration
Standardized APIs enable tracker data to be forwarded to customer-developed applications and higher-level management systems.
Central SCADA Integration
Combine tracker information with inverter, weather station, substation, BESS, and other plant equipment data.
One Operational View
Integrate tracker data into the customer's existing platform to reduce software switching and support centralized plant-wide dispatching.
One plant. One operational view. Less software switching.
Cloud, Local, or Hybrid Deployment
Local Deployment
Install the SCADA platform inside the plant network for projects requiring strict network isolation and local operation.
Cloud Deployment
Securely transmit plant information to the cloud for remote access, multi-site management, and centralized analytics.
Hybrid Deployment
Keep operational control locally while synchronizing selected information to the cloud for remote monitoring and fleet-level management.
Data Security from Field to Cloud
A multi-layer security architecture can protect operational information while ensuring that authorized personnel retain convenient access.
Access Security
User authentication, multi-role permissions, controlled access, and account management.
Network Security
Firewall, VPN, secure communication protocols, and network isolation where required.
Data Security
Encrypted transmission, protected data storage, and software/hardware security mechanisms where supported.
Why a Dedicated Solar Tracker SCADA System Matters
Thousands of distributed tracker controllers must respond continuously to solar position, mechanical conditions, backtracking logic, environmental changes, and communication status.
See the complete tracker fleet from plant level down to an individual TCU.
Identify abnormal trackers and communication problems before technicians enter the field.
Perform monitoring, diagnostics, and selected operations remotely.
Compare theoretical and actual tracker trajectories.
Correlate meteorological conditions with wind protection actions.
Use historical data, alarms, logs, and KPIs to optimize O&M.
Designed for Utility-Scale Solar Projects
A modular hierarchy allows additional arrays, NCUs, and tracker controllers to be added without redesigning the complete monitoring and control architecture.
Ideal Applications
From Tracker Control to Intelligent Solar Operations
The next generation of solar tracking is not only about positioning PV modules toward the sun. It is about connecting every tracker to a complete digital operating environment.
From the TCU controlling an individual tracker row, to the NCU managing field communication, to plant-level SCADA supervising thousands of devices, and finally to cloud services enabling global access, the Solar Tracker SCADA System creates an end-to-end digital foundation for modern photovoltaic plants.
With real-time monitoring, remote control, alarm management, historical analysis, meteorological linkage, standardized data interfaces, and flexible cloud/local deployment, operators gain the visibility required to manage increasingly large solar assets efficiently.
One platform. From the tracker to the cloud.
Looking for a Solar Tracker SCADA Solution?
Whether you are developing a new utility-scale solar project, integrating trackers into an existing plant SCADA, or building a centralized monitoring platform for multiple PV sites, we can help design a flexible architecture for your project.
Product Advantages
• Reasonable price.
• Durable & reliable quality.
• Customized & multiple designs.
Quality Warranty
• QC under ISO9001 quality system.
• Improved & steady process control.
• Full inspections & tests to guarantee quality.-
Dedicated Service
• Prompt response to clients’ request.
• Well trained team for complete work flow.
• Flexible growth with market & industrial change.
